Pre-order your femtosecond / picosecond laser for material processing!

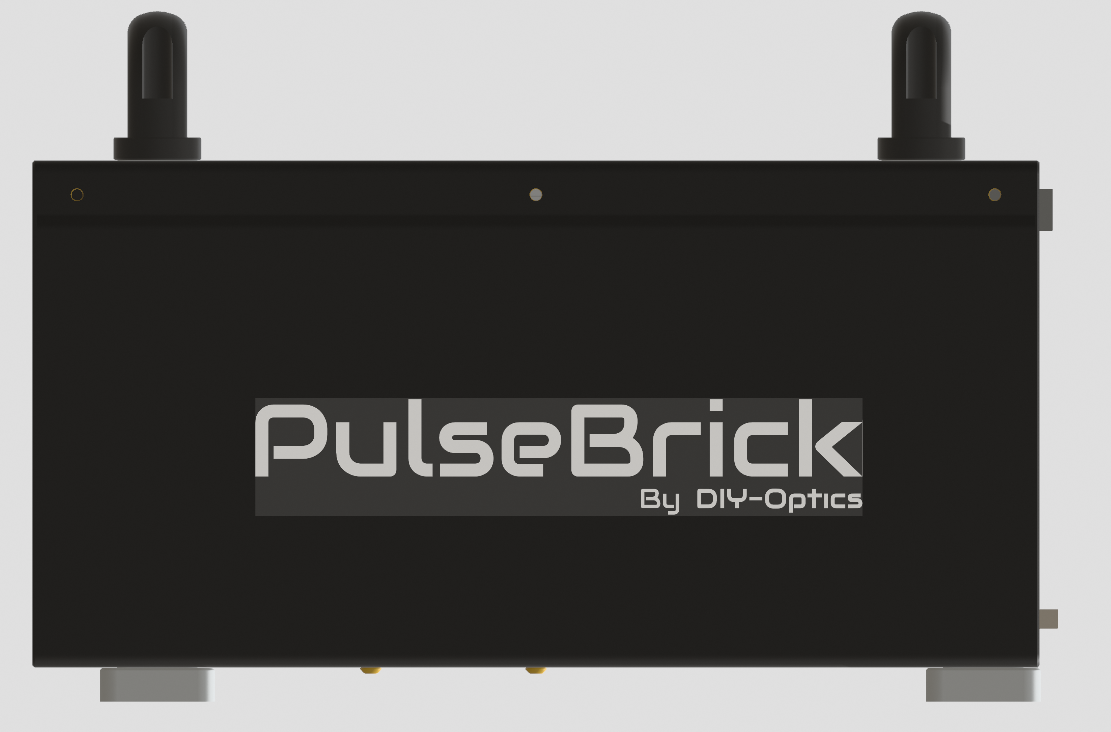

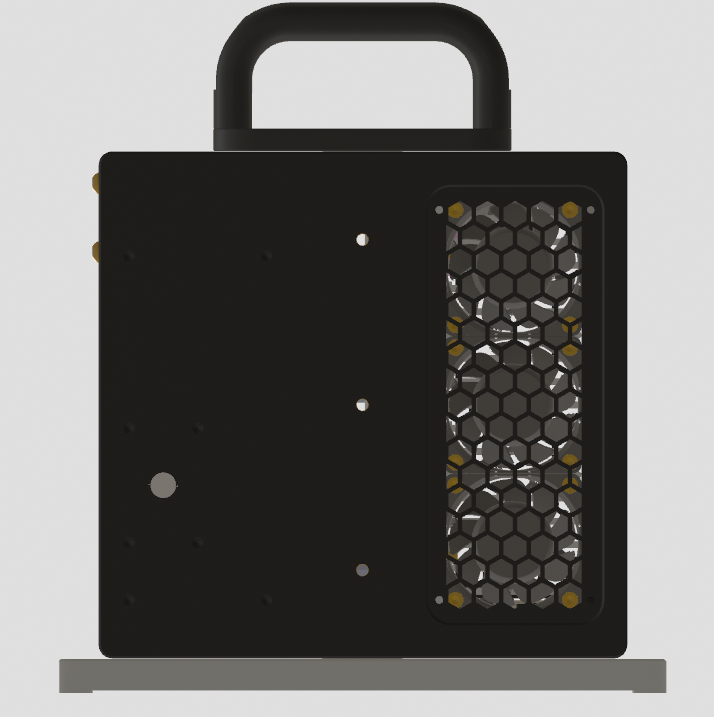

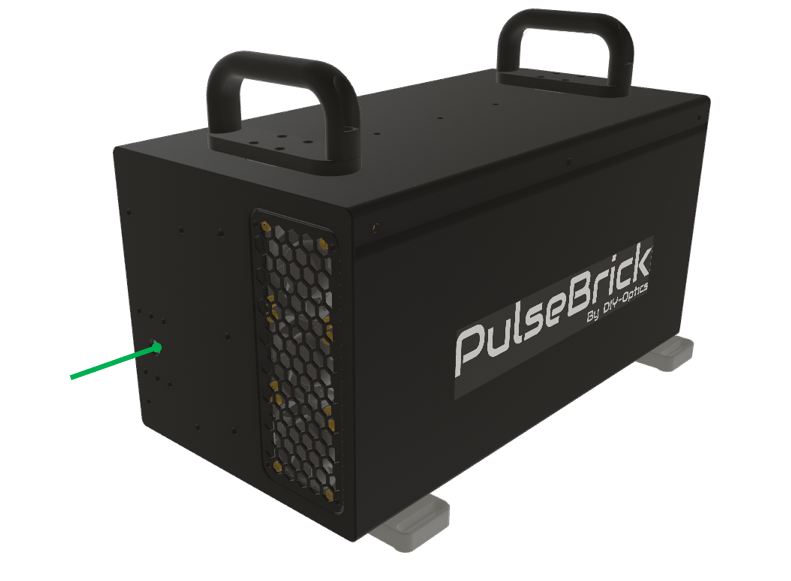

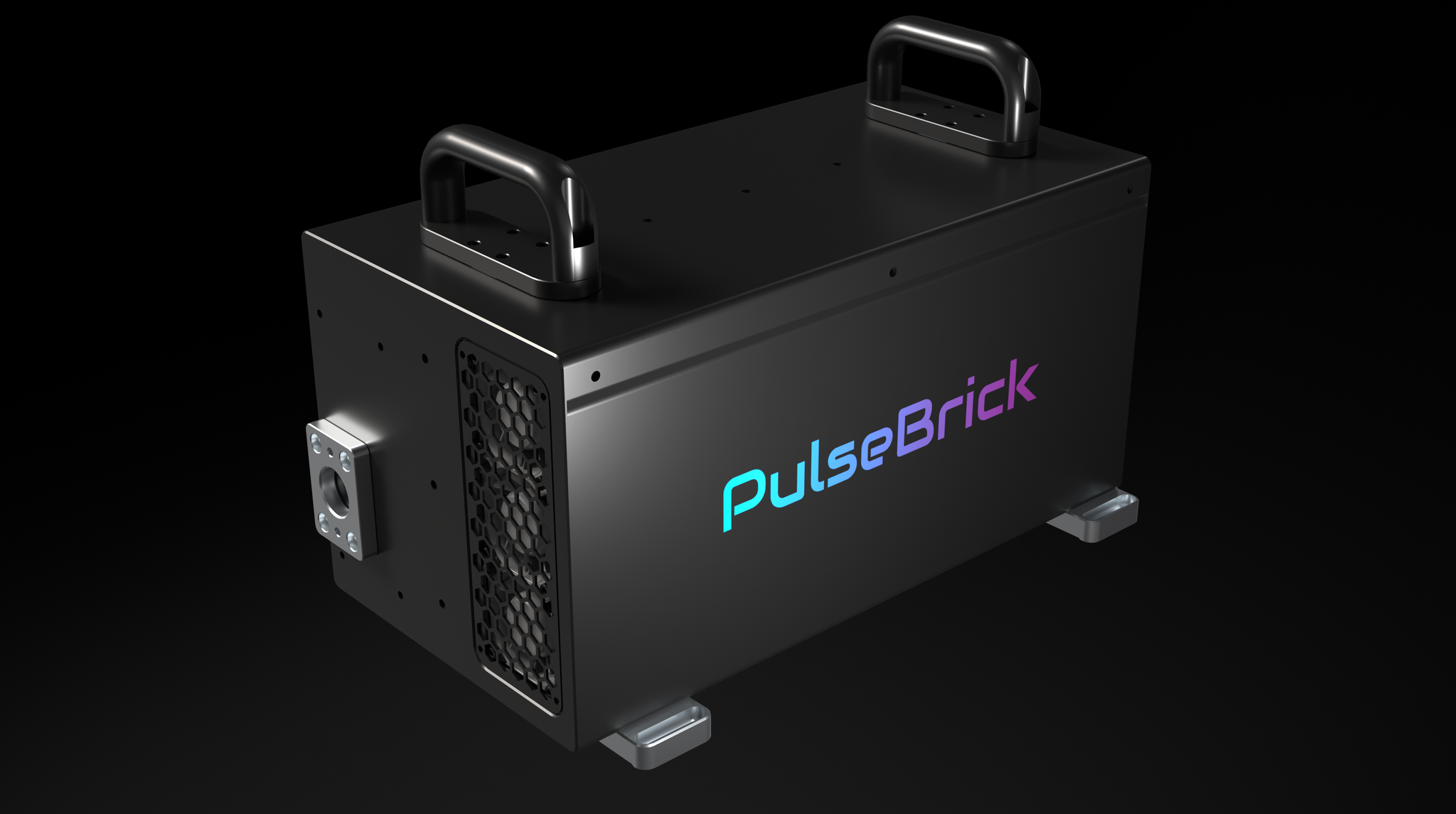

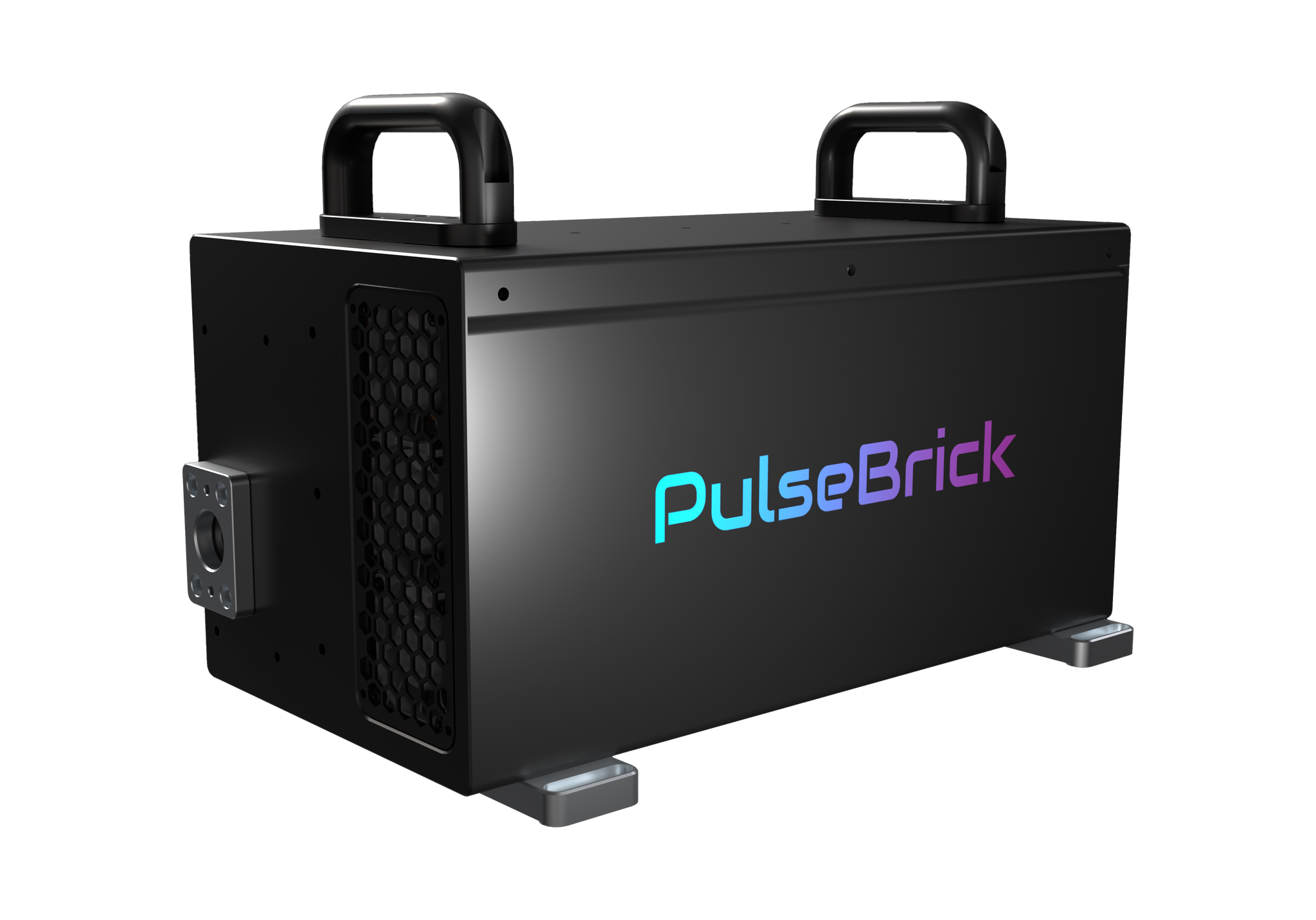

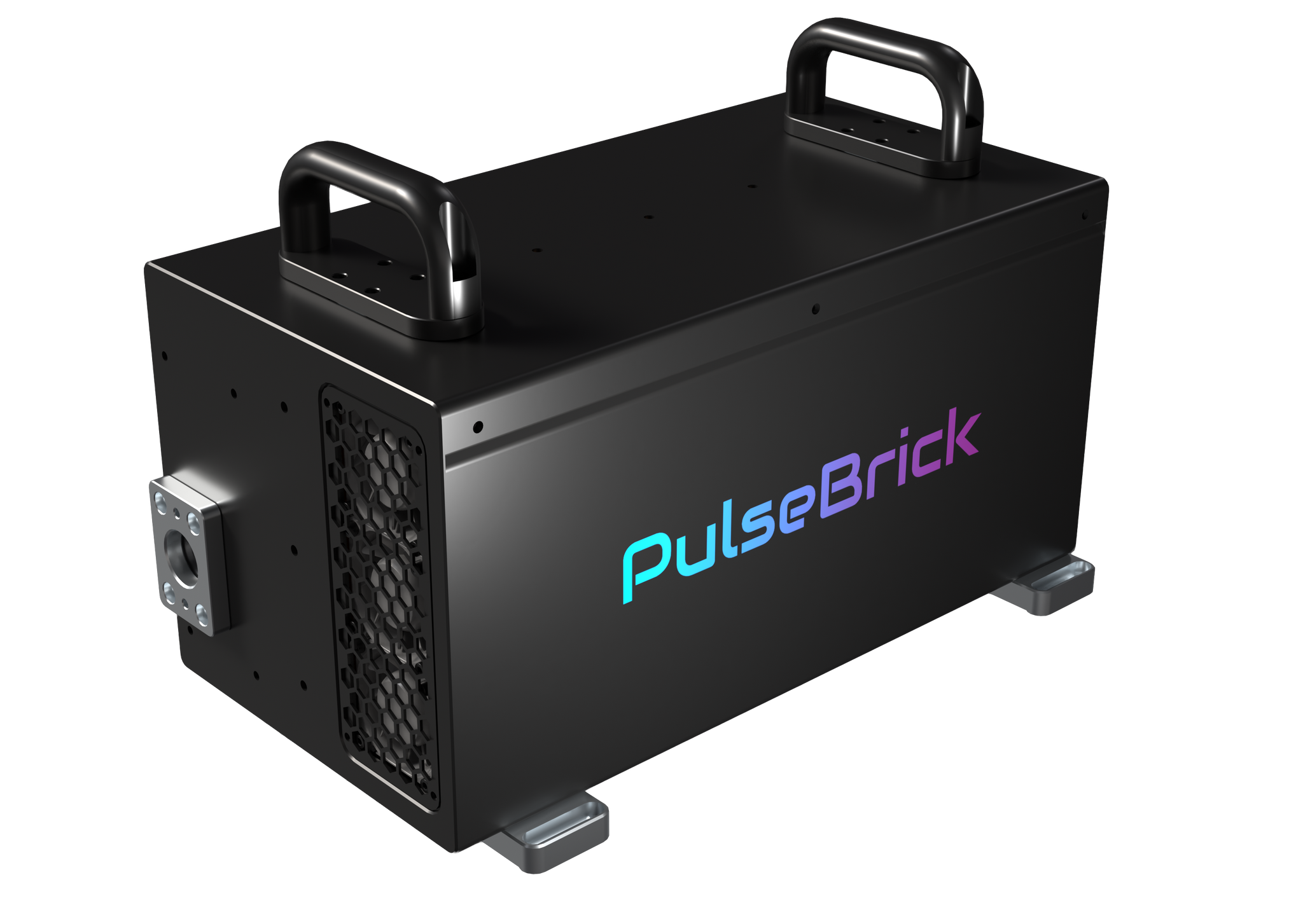

PulseBrick is a 1000 femtosecond / 1 picosecond laser for precision modification of materials, micromachining and microprocessing.

Advantages:

  • Cold processing with heat affected zones measured in nanometers.

  • Can process any material. Glass, ceramics, wood, textiles, metal. You name it!

  • Easy integration. Compact size. Short lead times. Low-cost.

  • Proven reliability and state-of-the-art engineering.



Lasers are developed and produced in Switzerland by our highly international team.



PulseBrick is based on: Simplification and Optimization to the extreme. Expired patents, decades old proven technologies, commonly used wavelengths, batch component orders, alignment free and easy to build design.

PulseBrick is optimized for cost and scalability. We are enabling applications to revolutionize industries, just like yours.

Modules and Add-Ons will be available to fit your application even more.



Specification:

We can only offer at the moment a range of parameters but keep in mind that even 10uJ of pulse energy is often enough at these pulse durations of ablate any material with outstanding precision.

  • Pulse energy (fixed) = 50uJ - 100uJ
  • Wavelength (fixed) = 1030nm - 1070nm
  • Pulse length (fixed) = 0.5 - 2ps
  • Repetition rate (fixed) = 200kHz - 400kHz
  • Total output power = 10W - 30W
  • M^2 = 1.3 or better
  • Output beam diameter (1/e^2) = 2mm
  • Analogue control (laser on/off)
  • Laser dimensions ca. 400mm x 400mm x 150mm (laser head size, no extra external control head needed

Contact us at info@diy-optics.com if you want extra features or add-ons.

  • standard material processing optics (galvo, f-theta, translation stages)
  • custom material processing optics (microscope objectives, prisms, lenses)
  • repetition rate tuning or single pulses
  • UV or green wavelength output
  • ... other. Let us know!

Terms and Conditions Apply:

  • The laser will be delivered latest by end of 2026. Likely even a couple month earlier than that. - This will be the first production batch and we need to do some work before this can happen.
  • You can any time change your mind and decide to ask for the refund. In exchange we can also any time (but latest by 31.12.2026) decide to refund your payment. Please note, up to 15% processing and administration fees can be deducted.
  • Full advance payment in necessary which can be done by Bank Transfer, PayPal, Credit Card payment. Reach out to us for a quotation!
