Pre-order your femtosecond / picosecond laser for material processing!

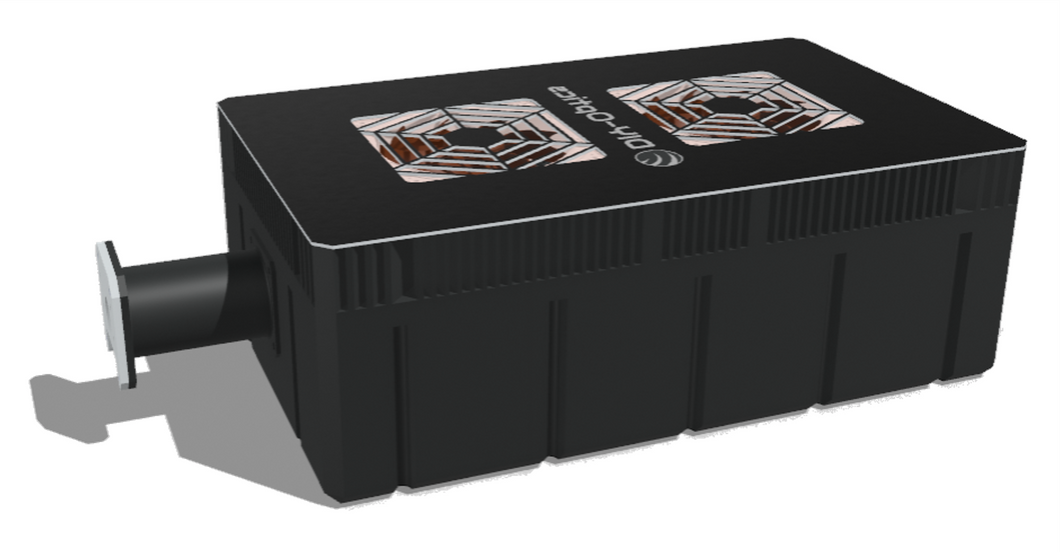

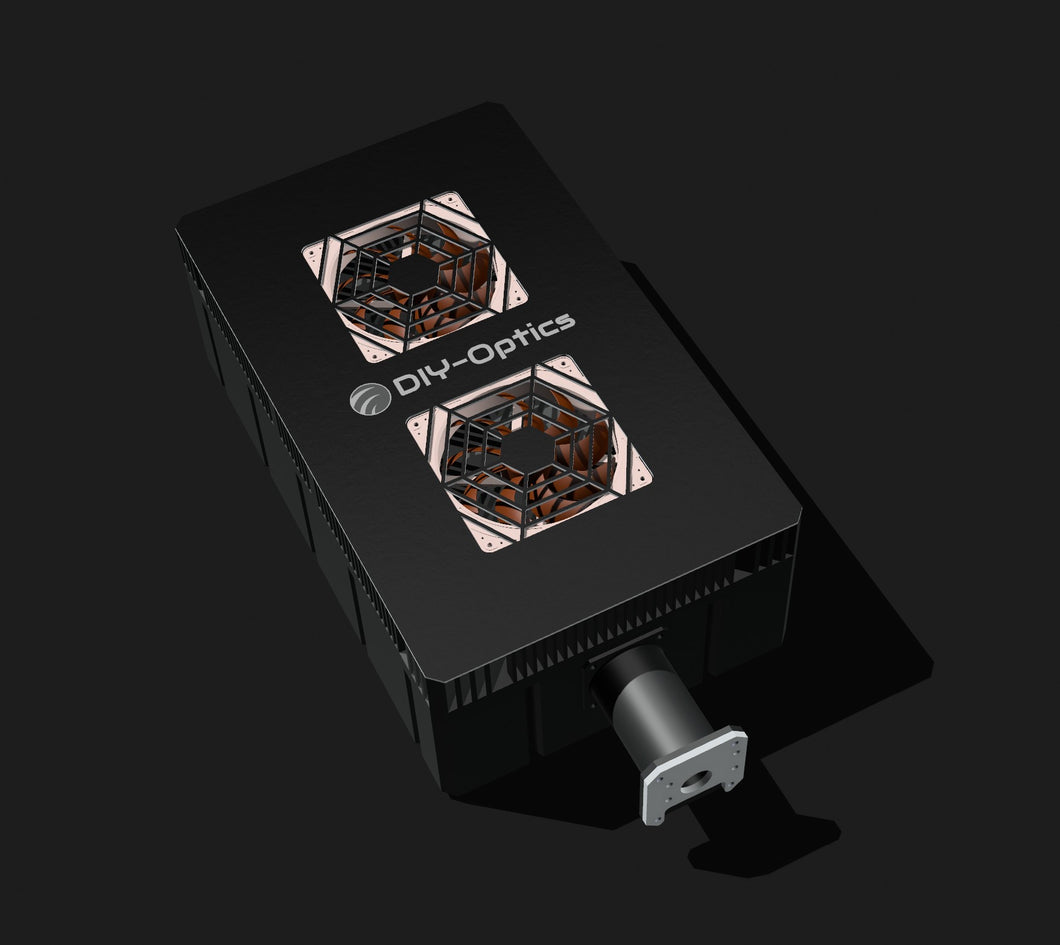

What we offer is a giant chirp laser oscillator based on proven and reliable design.
We realized that we don't need to invent anything new and can still build for you these oscillators at a fraction of the cost compared to other laser manufacturers.
Our solution is based on: Extreme simplification and optimization. Expired patents, decades old proven technologies, commonly used wavelengths, batch component orders, alignment free and easy to build design.
Typical applications:
- Seeding ultrashort pulse laser amplifiers
- Marking low damage threshold materials
- THz sources
- Material modifications (fibre Bragg gratings and lightguides)
- Supercontinuum generation
- Two photon polymerization 3D printing (additive manufacturing)
- Nonlinear microscopy (SHG, THG, 2PEF, CARS)
Specification:
We can only offer at the moment a range of parameters but keep in mind that compressed pulses with 0.1uJ pulse energy have already 1kW pulsed power.
- Pulse energy (fixed) = 0.05uJ - 0.2uJ
- Wavelength (fixed) = 1030nm - 1070nm
- Spectral bandwidth (fixed) = 3nm - 10nm
- Pulse length (fixed) = 300ps - 450ps
- Repetition rate (fixed) = 200kHz - 400kHz
- Total output power (fixed) = 10-80mW
- M^2 = 1.1 or better
- Output beam = PM980 fibre or collimated
- Linear chirp
- Optional pulse compressor module with ca. 500fs -1500fs compressed pulses. (please contact us for this option)
Terms and Conditions Apply:
- The laser will be delivered latest by end of 2026. Likely even a couple month earlier than that. - This will be the first production batch and we need to do some work before this can happen.
- You can any time change your mind and decide to ask for the refund. In exchange we can also any time (but latest by 31.12.2026) decide to refund your payment. Please note, up to 15% processing and administration fees can be deducted.
- Full advance payment in necessary which can be done by Bank Transfer, PayPal, Credit Card payment. Reach out to us for a quotation!
Want to read more about affordable USP lasers? Follow this link:
Affordable and Scalable Ultrashort Pulse Lasers (USP) for Material Pro – DIY-Optics GmbH
